Laser scanning is a highly accurate method to measure and capture the details of an existing building or construction site. Many construction projects lack current as-built drawings. This information is critical because it helps expedite design planning using real-world building data as a foundation. By utilizing laser scanning to capture and share information, clients are able to focus on delivering projects on time and on budget.

Location: Tucson AZ

Task: Using 3D laser scanning to capture as-built data for the remodeling of a college campus lab building.

Project Application: The contractor required exact details of the building structure, HVAC, and piping to plan for renovations.

Problem

• A college lab building was undergoing renovations, 19,000 square feet and 4 rooms required laser scanning.
• The contractor needed to capture exact locations of the building structure, including mullions, HVAC equipment, and piping locations.
• This project required a fast turnaround.

Solution

• In one day on site, 97 scans were taken with the RTC360 Leica laser scanner.

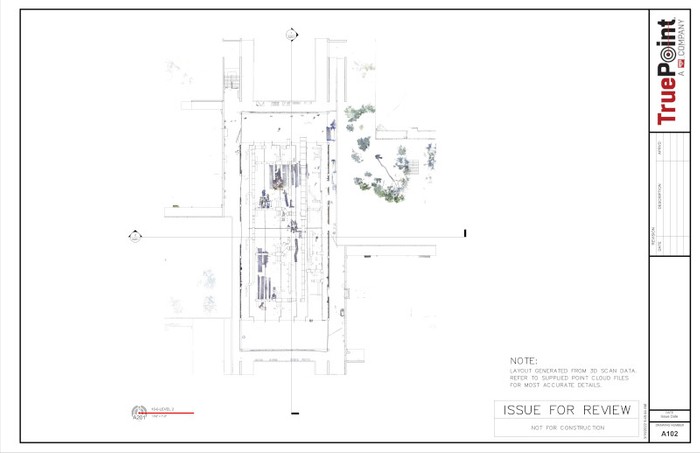

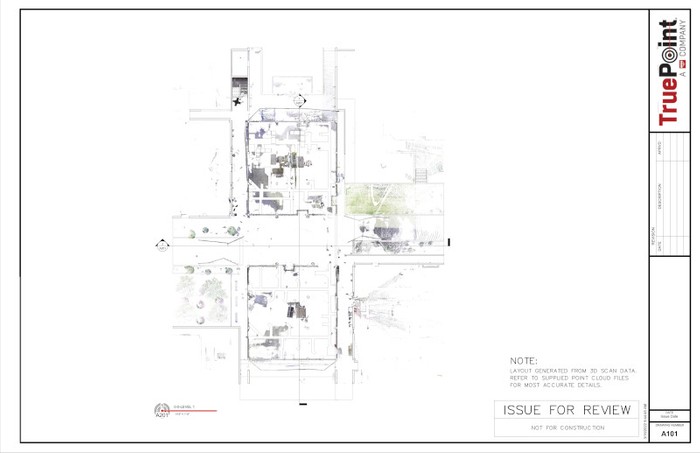

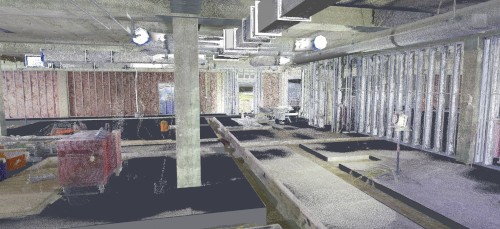

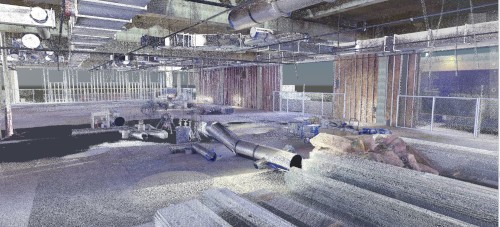

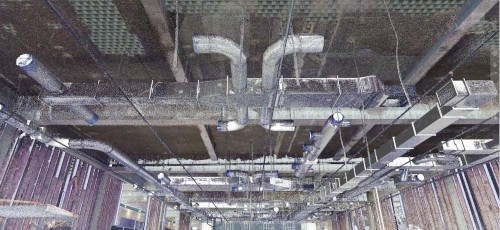

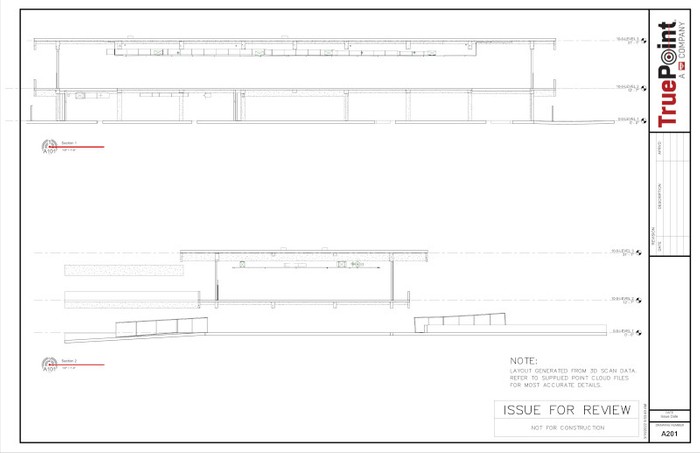

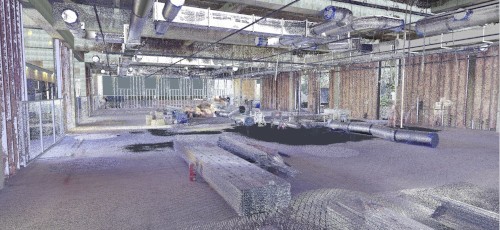

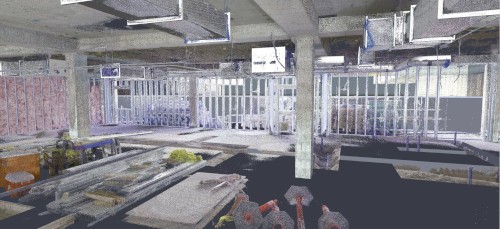

• The client received a colorized point cloud, 2D floor plans and sections, a 3D Revit model and TruViews for this project, all uploaded to ShareFile for fast access.

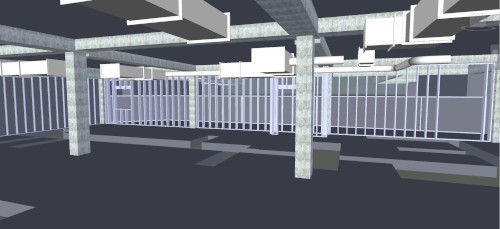

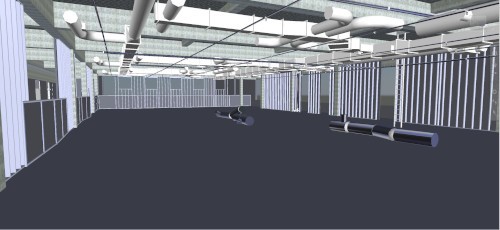

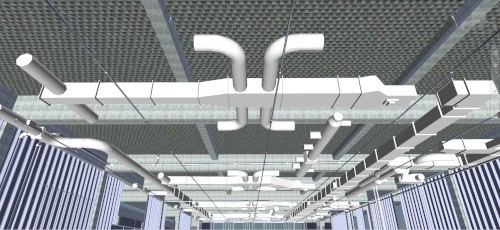

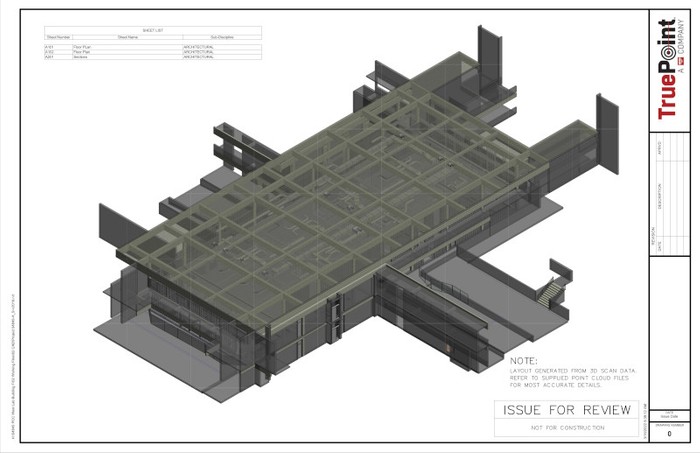

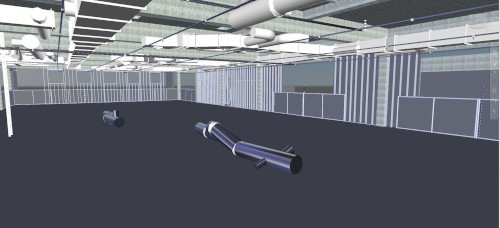

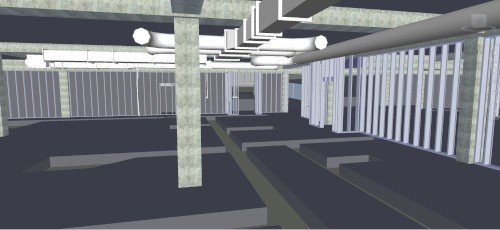

• The 3D Revit model was created in high detail featuring the size, shape, and locations of the lab in current conditions.

Benefits

• The Leica RTC360 is fast – capturing 2 million data points per second. The creation of colorized 3D point clouds can be completed in under two minutes per scan location.
• Laser scanning captures comprehensive project data to review off-site. This dramatically reduces the need for follow-up visits to review as-built details.
• Clients have quick access to the scanned data to make initial assessments and calculate estimates of a site build-out.
• The client was able to renovate an existing facility into a state-of-the-art lab space.
